Shapes

Reference

Shapes

Higher-level geometry builders: the 2D shapes circle, ellipse, rectangle, ngon, annulus, arc, wedge, ribbon, con_rings, fishnet, hex_grid, and hex_field; the 3D solids cylinder, cone, dome, sphere, cube, pyramid, and soccer_ball; and fresnel_zone (a radio link's 3D Fresnel tube).

Sample files

Download shape_examples.kml

2D shapes

These builders return flat KML geometry composed from the core polygon, line, and folder primitives. Unless a z_mode is passed, 2D planar shapes clamp to the ground and follow the terrain, so a 2-element [lon, lat] center works fine. Every builder forwards extra keyword arguments (z_mode, style_to_use, hidden, headers, attrs, ...) to its underlying primitive. Each also fills a default attribute table from its defining parameters (radius, azimuth, center, and so on); pass explicit headers/attrs to override it.

circle

Approximates a circle of a given radius (meters) with a regular polygon of steps vertices projected across the WGS-84 ellipsoid; more steps give a smoother edge.

circle(center, radius, *, steps=48, name="Circle", **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center.
radius	float	required	Radius in meters.
steps	int	48	Vertices around the circle; more gives a smoother edge.
name	str	'Circle'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing the circle Polygon.

Raises

ValueError if steps is less than 3.

# A 37.5 m circle around the Parkman Bandstand on Boston Common.
kmlb.shapes.circle([-71.065510, 42.354345, 0], 37.5)

ellipse

Builds an ellipse from its two semi-axis lengths (meters) and an orientation. At orient=0 the major axis runs north-south; increasing orient rotates it clockwise from true north.

ellipse(center, semi_major, semi_minor, *, orient=0.0, steps=64,
        name="Ellipse", **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center.
semi_major	float	required	Half the long-axis length, in meters.
semi_minor	float	required	Half the short-axis length, in meters.
orient	float	0.0	Clockwise rotation of the major axis, degrees from true north.
steps	int	64	Vertices around the ellipse.
name	str	'Ellipse'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing the ellipse Polygon.

Raises

ValueError if steps is less than 3.

# A ~1200 m x 660 m ellipse off Point Shirley / Yirrell Beach, Winthrop, tilted 18 deg west of north.
kmlb.shapes.ellipse([-70.964514, 42.360287, 0], 600, 330, orient=-18)

rectangle

Builds a rectangle anchored at corner. azimuth is the compass bearing (degrees from true north) of the rectangle's first (width) edge running from the corner: the default 90 runs width due east and height due south, an upright box, so corner is the upper-left corner. azimuth=0 points the first edge due north; increasing azimuth turns the whole rectangle clockwise about the corner so it can line up with a feature that is not north-up (which corner of the box corner represents turns with it). height always runs 90 degrees clockwise of width.

rectangle(corner, width, height, *, azimuth=90.0, name="Rectangle", **kwargs) -> Element

Parameter	Type	Default	Description
corner	list[float]	required	[lon, lat] or [lon, lat, z] anchor (upper-left corner at the default azimuth=90).
width	float	required	Length of the first edge (the one bearing azimuth), in meters.
height	float	required	Length of the perpendicular edge (90 degrees clockwise of width), in meters.
azimuth	float	90.0	Compass bearing of the first (width) edge, degrees from true north (0=north, 90=east). Default 90 runs width due east.
name	str	'Rectangle'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing the rectangle Polygon.

# A ~1260 m x 185 m dock apron on the East Boston waterfront, anchored at its
# north-west corner. Default azimuth=90 runs the width edge due east.
kmlb.shapes.rectangle([-71.029345, 42.341506, 0], 1260, 185)

# The same apron rotated to line up with a quay that bears 110 degrees (its width
# edge now runs east-south-east instead of due east).
kmlb.shapes.rectangle([-71.029345, 42.341506, 0], 1260, 185, azimuth=110)

ngon

Builds a regular polygon of sides equal edges, each vertex radius meters from the center. orient turns it clockwise; at orient=0 the first vertex points due north.

ngon(center, radius, sides, *, orient=0.0, name="Polygon", **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center.
radius	float	required	Distance from center to each vertex, in meters.
sides	int	required	Number of sides (3 = triangle, 5 = pentagon, 6 = hexagon).
orient	float	0.0	Clockwise rotation of the first vertex, degrees from true north.
name	str	'Ngon'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing the regular-polygon Polygon.

Raises

ValueError if sides is less than 3.

# A pentagon over Fort Independence, the five-bastioned fort on Castle Island.
kmlb.shapes.ngon([-71.011100, 42.338233, 0], 100, 5)

annulus

Builds a filled ring: an outer circle with a smaller concentric inner circle punched out as a hole.

annulus(center, inner_radius, outer_radius, *, steps=48, name="Annulus", **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center.
inner_radius	float	required	Inner (hole) radius, in meters; must be smaller than outer_radius.
outer_radius	float	required	Outer edge radius, in meters.
steps	int	48	Vertices around each circle.
name	str	'Annulus'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing a Polygon with one hole.

Raises

ValueError if inner_radius is not smaller than outer_radius, or if steps is less than 3.

# A 100 m-wide band (inner 160 m, outer 260 m) around Snake Island, Winthrop.
# Radii are given inner first, then outer.
kmlb.shapes.annulus([-70.979528, 42.365842, 0], 160, 260)

arc

Draws a curved path at a fixed radius from a center point, sweeping from start_az to end_az (degrees from true north). Returns a line, not a filled sector (use wedge for a filled sector).

arc(center, radius, start_az, end_az, *, steps=32, name="Arc", **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center.
radius	float	required	Arc radius, in meters.
start_az	float	required	Starting azimuth, degrees from true north.
end_az	float	required	Ending azimuth, degrees from true north.
steps	int	32	Segments along the arc.
name	str	'Arc'	Placemark name.
**kwargs			Any keyword argument accepted by line.

Returns

Element: a KML Placemark containing the arc LineString.

# A field-of-fire arc for Fort Warren on Georges Island: a 550 m reach sweeping
# the harbor approach from north-east (46 deg) through south-east to south (172 deg).
kmlb.shapes.arc([-70.9285, 42.3199, 0], 550, 46, 172)

wedge

Builds a pie-wedge-shaped polygon: a circular sector centered on a point, opening toward an azimuth, with a given angular width and radius. The arc is approximated with steps vertices projected across the WGS-84 ellipsoid.

A wedge maps naturally onto a cellular coverage sector, which makes it a handy way to illustrate cell-tower coverage. The azimuth is the direction the antenna faces, the width is the sector's beamwidth, and the radius is its reach, so the shape visualizes sector width, direction, and reach at a glance.

wedge(origin, azimuth, width, radius, *, tilt=0.0, steps=15, name="Wedge", **kwargs) -> Element

Parameter	Type	Default	Description
origin	list[float]	required	[lon, lat, elev] origin of the wedge (where its two straight edges meet).
azimuth	float	required	Direction the center of the arc points, degrees from true north.
width	float	required	Angular width of the wedge, in degrees.
radius	float	required	Length of the wedge's straight edges, in meters.
tilt	float	0.0	Elevation tilt of the whole sector, in degrees: 0 is flat on the ground, -90 points it straight down, 90 straight up. See the note below.
steps	int	15	Number of vertices along the arc; more steps give a smoother curve.
name	str	'Wedge'	Placemark name.
**kwargs			Any keyword argument accepted by polygon (e.g. z_mode, style_to_use, hidden, headers, attrs).

Returns

Element: a KML Placemark containing the wedge Polygon.

Raises

ValueError if steps is less than 2.

Tilt and altitude

A tilt lifts the sector off the ground, so it only renders under a non-clamped altitude mode. When tilt is nonzero and no z_mode is given, wedge selects 'ABS' (absolute) automatically and treats the center's z as an absolute (MSL) altitude. Pass an explicit z_mode (for example z_mode='RTG' to measure from the ground) to override.

Examples

A wedge opening due east

# A 30°-wide wedge of radius 1 km, opening due east from a center point.
w = kmlb.shapes.wedge([-71.0589, 42.3601, 0], azimuth=90, width=30, radius=1000)

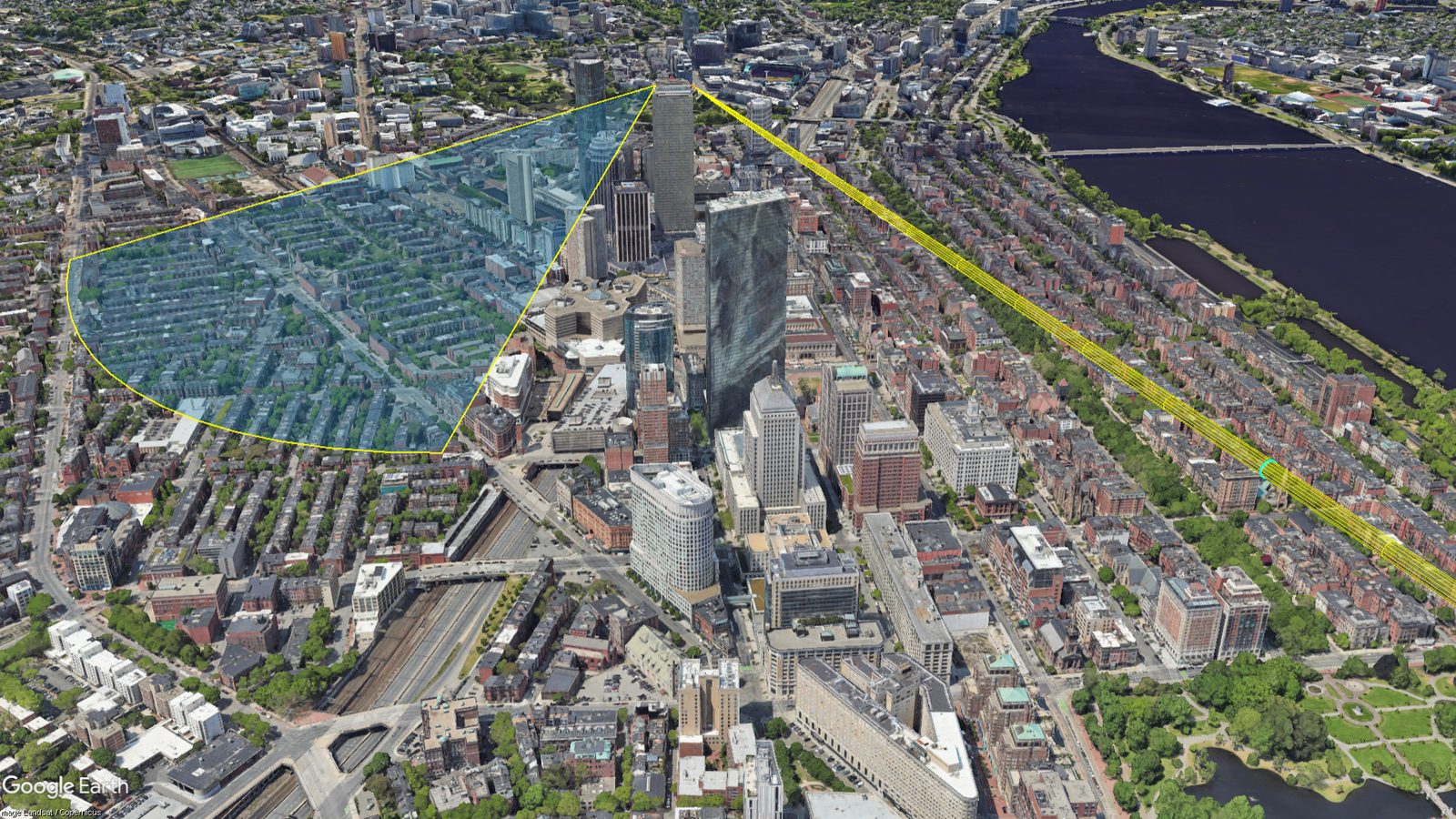

An antenna sector with 6° of down-tilt

# The center z is an absolute altitude (antenna height above sea level); the
# sector tilts 6° below horizontal. z_mode defaults to 'ABS' when tilted.
w = kmlb.shapes.wedge([-71.0589, 42.3601, 45], azimuth=90, width=30, radius=1000, tilt=-6)

ribbon

Buffers an open path into a polygon by offsetting each vertex along the bisector of its turn (a miter join), so the ribbon keeps an even width through bends. Useful for trails, rail lines, pipelines, and flight corridors. Pass width as a single value for an even width, or as a list (one value per path point) for a ribbon that widens and narrows along its length, such as a hurricane track's wind field.

ribbon(path, width, *, name="Ribbon", **kwargs) -> Element

Parameter	Type	Default	Description
path	list[list[float]]	required	Ordered [lon, lat] (or [lon, lat, z]) vertices, 2 or more.
width	float or list[float]	required	Total width in meters: a single value, or one value per path point.
name	str	'Ribbon'	Placemark name.
**kwargs			Any keyword argument accepted by polygon.

Returns

Element: a KML Placemark containing the ribbon Polygon.

Raises

ValueError if path has fewer than 2 points, or if a width list's length does not match path.

# A 45 m-wide ribbon down a path along the Rose Kennedy Greenway.
path = [
    [-71.051781, 42.358581], [-71.051176, 42.356909],
    [-71.051159, 42.356408], [-71.051254, 42.355748],
    [-71.051645, 42.355150], [-71.051895, 42.354950],
    [-71.053736, 42.353987],
]
kmlb.shapes.ribbon(path, 45)

# A variable-width ribbon: narrow at the ends, wide in the middle.
kmlb.shapes.ribbon(path, [20, 40, 60, 80, 60, 40, 20])

con_rings

Draws one unfilled circle outline per radius and returns them in a folder, so each ring toggles on its own and carries a Ring/Radius attribute table. Give the radii explicitly as radii, or generate an evenly spaced series with start, interval, and count.

con_rings(center, radii=None, *, start=None, interval=None, count=None,
          steps=48, name="Concentric Rings", collapsed=True, hidden=False,
          **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center all rings share.
radii	list[float]	None	Explicit radius for each ring, in meters. If None (the default), built from start/interval/count.
start	float	None	Innermost ring radius, in meters (generator form).
interval	float	None	Spacing between successive rings, in meters (generator form).
count	int	None	Number of rings to generate (generator form).
steps	int	48	Vertices around each ring.
name	str	'Concentric Rings'	Folder name.
collapsed	bool	True	Whether the folder starts collapsed in the places panel.
hidden	bool	False	Whether the folder starts hidden.
**kwargs			Any keyword argument accepted by line; applied to every ring.

Returns

Element: a KML Folder of line rings.

Raises

ValueError if neither radii nor all of start, interval, and count are given, or if steps is less than 3.

# Five range rings at 200 m intervals (200 m out to 1000 m) around Boston Light.
kmlb.shapes.con_rings([-70.890110, 42.327942, 0], start=200, interval=200, count=5)

# The same rings from an explicit list.
kmlb.shapes.con_rings([-70.890110, 42.327942, 0], [200, 400, 600, 800, 1000])

fishnet

Tiles a cols by rows grid of rectangular cells starting from an upper-left corner and returns them in a folder; cells march along the top edge (column) and 90 degrees clockwise of it (row). Pass cell_dim as one value for square cells, or [x, y] for rectangular cells (x along the columns, y along the rows). azimuth is the compass bearing of the top (column) edge: the default 90 runs columns due east and rows due south. Increasing azimuth turns the whole grid clockwise about the corner. Every cell is clickable: pass ids to name the cells, and each carries an ID/Row/Column attribute table.

fishnet(corner, cell_dim, cols, rows, *, azimuth=90.0, ids=None, labels=False,
        label_color=None, name="Fishnet", collapsed=True, hidden=False, **kwargs) -> Element

Parameter	Type	Default	Description
corner	list[float]	required	[lon, lat] or [lon, lat, z] anchor (upper-left corner at the default azimuth=90).
cell_dim	float or list[float]	required	One value (square cells) or [x, y] (rectangular: x along the columns, y along the rows), in meters.
cols	int	required	Number of columns.
rows	int	required	Number of rows.
azimuth	float	90.0	Compass bearing of the top (column) edge, degrees from true north (0=north, 90=east). Default 90 runs columns due east.
ids	list	None	Cell IDs, as a flat row-major list (rows * cols values) or a nested rows by cols list. Each names its cell and appears in its attribute table. When omitted, cells are named r{row}c{col}.
labels	bool	False	True puts the cells in a Cells subfolder and adds a sibling Labels subfolder with a text label at each cell's centroid (named by its ID), so each toggles on its own.
label_color	tuple	None	Color (hex, opacity) for the label dots. When None, they match the cells' outline color.
name	str	'Fishnet'	Folder name.
collapsed	bool	True	Whether the folder starts collapsed in the places panel.
hidden	bool	False	Whether the folder starts hidden.
**kwargs			Any keyword argument accepted by polygon; applied to every cell.

Returns

Element: a KML Folder of polygon cells.

Raises

ValueError if cols or rows is less than 1.

Cell order for ids

Cells are built row by row from the corner, so a flat ids list is read in that same order: the first row fills left to right along the top edge (columns 0, 1, ... cols-1), then the next row down, and so on. A flat list is therefore [r0c0, r0c1, ..., r0c(cols-1), r1c0, ...] (index row*cols + col); a nested list is indexed ids[row][col]. Every cell also carries Row and Column values in its attribute table, so placement can be confirmed in Google Earth.

# A 20 m fishnet filling a rotated (diamond) parking lot in South Boston, anchored
# at the lot's north corner and rotated so the cells line up with the lot edge.
lot = [
    [-71.05038153, 42.34324057],   # west corner
    [-71.04865971, 42.34210311],   # south corner
    [-71.04721297, 42.34333098],   # east corner
    [-71.04895166, 42.34446722],   # north corner
]
cell = 20
cols = rows = max(1, round(kmlb.distance(lot[1], lot[2]) / cell))   # 9
# azimuth is the column-edge bearing, so aim it straight down the lot's top edge.
azimuth = kmlb.bearing(lot[3], lot[2])                              # north -> east corner
kmlb.shapes.fishnet(lot[3] + [0], cell, cols, rows, azimuth=azimuth)

# Rectangular 30 m x 20 m cells instead, with IDs for clickable, labelled cells.
# The flat list fills row by row: A1/A2/A3 across the top, then B1/B2/B3 below.
kmlb.shapes.fishnet(lot[3] + [0], [30, 20], 3, 2, azimuth=azimuth,
                    ids=["A1", "A2", "A3", "B1", "B2", "B3"])

# labels=True adds a "Labels" subfolder with each cell's ID shown on the map.
kmlb.shapes.fishnet(lot[3] + [0], cell, cols, rows, azimuth=azimuth, labels=True)

hex_grid

Tiles a cols by rows lattice of flat-top hexagons starting from an upper-left corner, each of radius cell meters (center to vertex), interlocked edge to edge. azimuth is the compass bearing of the column direction (default 90 runs columns due east); increasing it turns the whole grid clockwise about the corner. The rotation is rigid, so the hexagons stay tessellated at any azimuth. Cells are clickable and ID-able just like fishnet.

hex_grid(corner, cell, cols, rows, *, azimuth=90.0, ids=None, labels=False,
         label_color=None, name="Hex Grid", collapsed=True, hidden=False, **kwargs) -> Element

Parameter	Type	Default	Description
corner	list[float]	required	[lon, lat] or [lon, lat, z] anchor (upper-left corner at the default azimuth=90).
cell	float	required	Hexagon radius (center to vertex), in meters.
cols	int	required	Number of columns.
rows	int	required	Number of rows.
azimuth	float	90.0	Compass bearing of the column direction, degrees from true north (0=north, 90=east). Default 90 runs columns due east.
ids	list	None	Cell IDs, flat row-major or nested rows by cols. When omitted, cells are named r{row}c{col}.
labels	bool	False	True puts the cells in a Cells subfolder and adds a sibling Labels subfolder with a text label at each cell's centroid (named by its ID), so each toggles on its own.
label_color	tuple	None	Color (hex, opacity) for the label dots. When None, they match the cells' outline color.
name	str	'Hex Grid'	Folder name.
collapsed	bool	True	Whether the folder starts collapsed in the places panel.
hidden	bool	False	Whether the folder starts hidden.
**kwargs			Any keyword argument accepted by polygon; applied to every cell.

Returns

Element: a KML Folder of polygon cells.

Raises

ValueError if cols or rows is less than 1.

Cell order for ids

Cells are built row by row from the corner, so a flat ids list is read in that same order: the first row fills left to right (columns 0, 1, ... cols-1), then the next row down, and so on. A flat list is therefore [r0c0, r0c1, ..., r0c(cols-1), r1c0, ...] (index row*cols + col); a nested list is indexed ids[row][col]. Every cell also carries Row and Column values in its attribute table, so placement can be confirmed in Google Earth.

# A hexagonal grid filling the same rotated South Boston parking lot as the fishnet
# example above, anchored at its north corner with columns bearing 131.38 degrees.
kmlb.shapes.hex_grid([-71.048952, 42.344467, 0], 12, 10, 9, azimuth=131.38)

# labels=True adds a "Labels" subfolder with each cell's ID shown on the map.
kmlb.shapes.hex_grid([-71.048952, 42.344467, 0], 12, 10, 9, azimuth=131.38, labels=True)

hex_field

Tiles a hexagon-shaped cluster of flat-top hexagons: a central cell surrounded by rings rings of hexagons, so the whole cluster is itself a hexagon. Each hexagon has a radius of cell meters (center to vertex) and the cells interlock edge to edge. The total cell count is 1 + 3 * rings * (rings + 1) (7 at rings=1, 19 at rings=2, 37 at rings=3). Cells are numbered 1, 2, 3, ... in a spiral outward from the center, and each carries an ID/Ring attribute table.

hex_field(center, cell, rings, *, azimuth=90.0, ids=None, labels=False,
          label_color=None, name="Hex Field", collapsed=True, hidden=False, **kwargs) -> Element

Parameter	Type	Default	Description
center	list[float]	required	[lon, lat] or [lon, lat, z] center hexagon.
cell	float	required	Hexagon radius (center to vertex), in meters.
rings	int	required	Number of rings of hexagons around the center hexagon.
azimuth	float	90.0	Clockwise rotation of the whole cluster about the center, degrees from true north. Default 90 is the base orientation; the rotation stays tessellated at any angle.
ids	list	None	Cell labels as a flat list of 1 + 3*rings*(rings+1) values in cell order (cell 1 the center, then ring by ring); ids[k] names cell k+1. When omitted, cells are named 1, 2, 3, ...
labels	bool	False	True puts the cells in a Cells subfolder and adds a sibling Labels subfolder with a text label at each cell's centroid (named by its ID), so each toggles on its own.
label_color	tuple	None	Color (hex, opacity) for the label dots. When None, they match the cells' outline color.
name	str	'Hex Field'	Folder name.
collapsed	bool	True	Whether the folder starts collapsed in the places panel.
hidden	bool	False	Whether the folder starts hidden.
**kwargs			Any keyword argument accepted by polygon; applied to every cell.

Returns

Element: a KML Folder of polygon cells.

Raises

ValueError if rings is less than 1, or if ids is given with the wrong length.

Cell numbering

Cells are numbered in a spiral outward from the center: cell 1 is the center, then the spiral winds through each ring (cells 2-7 are the first ring, 8-19 the second, and so on), so consecutive numbers are always neighbours. A cell's Ring value (in its attribute table) is its ring number, 0 for the center. Pass ids as a flat list in that same order to relabel the cells.

# Three rings of 60 m hexes; cells are auto-numbered 1..37 outward from the center.
kmlb.shapes.hex_field([-71.066, 42.355, 0], 60, 3)

# Label the 7 cells of a one-ring cluster (center first, then around the ring).
kmlb.shapes.hex_field([-71.066, 42.355, 0], 60, 1,
                      ids=["hub", "A", "B", "C", "D", "E", "F"])

# labels=True adds a "Labels" subfolder showing each cell's number on the map.
kmlb.shapes.hex_field([-71.066, 42.355, 0], 60, 3, labels=True)

Example: a 2D scene

Every 2D builder returns an ordinary KML element, so a scene is just a list of them written with kml. This bundles a set of 2D builders into a single file, each a plain one-line call spread across Boston Harbor.

import kmlb
from kmlb import shapes

# a path for the ribbon to follow (Rose Kennedy Greenway)
greenway = [
    [-71.051781, 42.358581], [-71.051254, 42.355748],
    [-71.051895, 42.354950], [-71.053736, 42.353987],
]

features = [
    shapes.circle([-71.065510, 42.354345, 0], 37.5),                        # Parkman Bandstand
    shapes.ellipse([-70.964514, 42.360287, 0], 600, 330, orient=-18),       # Point Shirley
    shapes.rectangle([-71.029345, 42.341506, 0], 1260, 185),                # East Boston dock
    shapes.ngon([-71.011100, 42.338233, 0], 100, 5),                        # Fort Independence
    shapes.annulus([-70.979528, 42.365842, 0], 160, 260),                   # Snake Island
    shapes.arc([-70.928500, 42.319900, 0], 550, 46, 172),                   # Fort Warren
    shapes.wedge([-71.067071, 42.354500, 0], azimuth=202.44, width=90, radius=60),  # ballfield, Boston Common
    shapes.ribbon(greenway, 45),                                            # Greenway path
    shapes.con_rings([-70.890110, 42.327942, 0], start=200, interval=200, count=5),  # Boston Light
    shapes.fishnet([-71.048952, 42.344467, 0], 20, 9, 9, azimuth=131.38),   # South Boston lot
    shapes.hex_field([-71.017548, 42.334915, 1], 40, 5, z_mode="RTG", labels=True),  # Pleasure Bay lagoon, 1 m up
]

kmlb.kml("2D shapes", features, path="shapes_2d.kml")

Download shapes_2d.kml

---

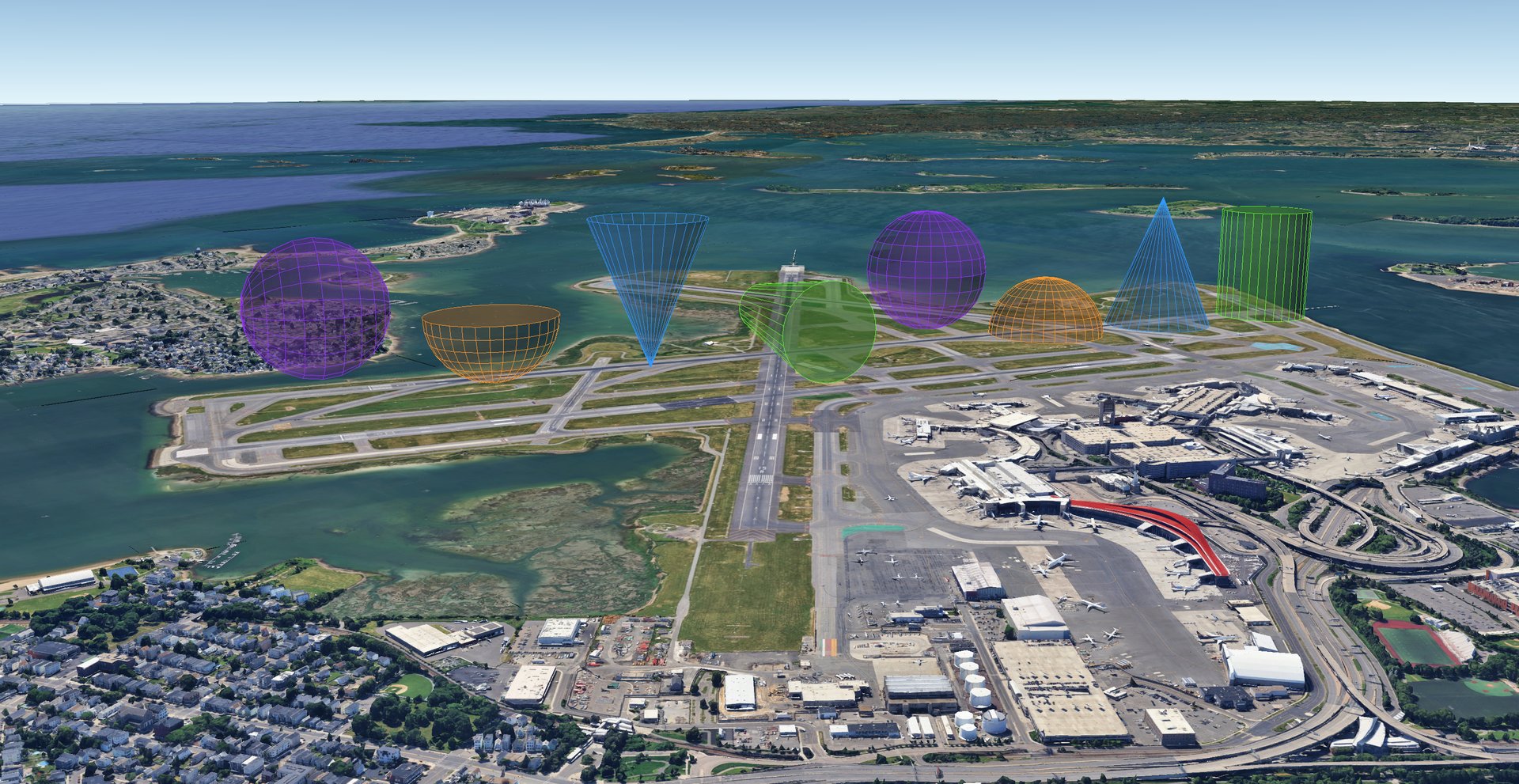

3D solids

cylinder, cone, dome, sphere, cube, pyramid, and soccer_ball build point-anchored 3D volumes at absolute altitude, so give coords a real (MSL) z. Most return a single Placemark wrapping a <MultiGeometry> of polygon panels (soccer_ball returns a folder of two).

Shared conventions

• coords: the anchor point as [lon, lat, z].
• azimuth/tilt: aim the axis. tilt=90 (default) stands the solid straight up, tilt=0 lays it horizontal, tilt=-90 points it down; azimuth is the compass bearing it leans toward when tilted.
• anchor: slides the body along the axis so its named point sits at coords: 'base' (near end, body extends along the axis), 'center' (midpoint), or 'top' (far end, body hangs back). All solids move the same direction, so sphere(mast, 5, anchor='base') rests the bottom pole on the mast tip, and a forward-opening cone beam is anchor='top' with the axis aimed by azimuth/tilt.
• headers/attrs: override the attribute table.
• style_to_use: name a shared polygon style to use instead of color.
• cam: a LookAt/Camera default view.

Altitude and translucency

coords's z is an absolute MSL altitude, so give it enough height to clear the terrain. The default fills are translucent (~40%), which Google Earth renders with some see-through banding on a closed solid: a viewer limitation, not a geometry issue. Raise the opacity for a more solid look.

cylinder

Builds a 3D cylinder volume: two radius end discs height apart along the axis, joined by side panels.

cylinder(coords, radius, height, *, top_radius=None, azimuth=0, tilt=90,
         anchor="base", sides=32, color=("#66ff33", 40), cap=True, headers=None,
         attrs=None, style_to_use=None, name="Cylinder", z_mode="ABS", hidden=False,
         cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] anchor point; z is an absolute (MSL) altitude.
radius	float	required	Base circle radius in meters.
height	float	required	Length along the axis, in meters.
top_radius	float	None	Top circle radius in meters. None equals radius (a true cylinder); a different value tapers it into a frustum, and 0 closes it to a point like a cone.
azimuth	float	0	Compass bearing the axis leans toward; only matters when the axis is tilted.
tilt	float	90	Axis angle above horizontal: 90 = straight up, 0 = horizontal, -90 = straight down.
anchor	str	'base'	Which point sits at coords: 'base', 'center', or 'top'. See Shared conventions above.
sides	int	32	Facets around the circumference; more gives a rounder solid.
color	color	('#66ff33', 40)	Fill color as a palette name, #rrggbb, or (color, opacity). The outline uses the same hue, opaque.
cap	bool	True	Close both ends with a disc.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Cylinder'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the cylinder's panels.

Raises

ValueError if top_radius is negative.

# A 30 m safety cylinder over a helipad (10 m radius) at 52 m MSL.
kmlb.shapes.cylinder([-71.063187, 42.349164, 52], 10, 30)

# A tapered frustum (a cooling tower): 20 m base narrowing to an 11 m top.
kmlb.shapes.cylinder([-71.056307, 42.344475, 0], 20, 45, top_radius=11, z_mode="RTG")

cone

Builds a 3D cone volume: a radius base disc tapering to a point height away along the axis. anchor slides the cone along the axis the same way it moves the other solids: 'base' sits the base disc at coords with the apex out along the axis, 'top' sits the apex at coords with the base hanging back.

cone(coords, radius, height, *, azimuth=0, tilt=90, anchor="base",
     sides=32, color=("#3399ff", 40), cap=True, headers=None, attrs=None,
     style_to_use=None, name="Cone", z_mode="ABS", hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] anchor point; z is an absolute (MSL) altitude.
radius	float	required	Base radius in meters.
height	float	required	Base-to-apex length along the axis, in meters.
azimuth	float	0	Compass bearing the axis leans toward; only matters when the axis is tilted.
tilt	float	90	Axis angle above horizontal: 90 = straight up, 0 = horizontal, -90 = straight down.
anchor	str	'base'	Which point sits at coords: 'base' (base disc), 'center', or 'top' (apex). See Shared conventions above.
sides	int	32	Facets around the circumference; more gives a rounder solid.
color	color	('#3399ff', 40)	Fill color as a palette name, #rrggbb, or (color, opacity). The outline uses the same hue, opaque.
cap	bool	True	Close the base with a disc.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Cone'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the cone's panels.

# A radio antenna mast: a slender apex-up cone, 45 m tall, atop a 171 m MSL tower.
kmlb.shapes.cone([-71.060854, 42.358412, 171], 3, 45)

# Its broadcast beam: apex at the mast top (216 m), tilted down and widening toward the ground.
# cap=False leaves the wide end open, so it reads as a beam rather than a solid cone.
kmlb.shapes.cone([-71.060854, 42.358412, 216], 30, 120, anchor="top", azimuth=90, tilt=10, cap=False)

dome

Builds a 3D hemisphere: a radius base disc rising in rings bands to a pole one radius along the axis. Invert it (tilt=-90, anchor="top") for a bowl.

dome(coords, radius, *, azimuth=0, tilt=90, anchor="base", sides=32,
     rings=8, color=("#ff9933", 40), cap=True, headers=None, attrs=None,
     style_to_use=None, name="Dome", z_mode="ABS", hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] anchor point; z is an absolute (MSL) altitude.
radius	float	required	Radius in meters.
azimuth	float	0	Compass bearing the axis leans toward; only matters when the axis is tilted.
tilt	float	90	Axis angle above horizontal: 90 = straight up, 0 = horizontal, -90 = straight down (bowl).
anchor	str	'base'	Which point sits at coords: 'base', 'center', or 'top' (pole). See Shared conventions above.
sides	int	32	Facets around the circumference; more gives a rounder solid.
rings	int	8	Horizontal bands from rim to pole; more gives a smoother curve.
color	color	('#ff9933', 40)	Fill color as a palette name, #rrggbb, or (color, opacity). The outline uses the same hue, opaque.
cap	bool	True	Close the base with a disc.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Dome'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the dome's panels.

# A 270 m no-fly-zone bubble over a Charles River fireworks show (base at river level).
kmlb.shapes.dome([-71.085106, 42.356654, 0], 270)

sphere

Builds a full 3D sphere centered on coords, extending radius in every direction, meshed into sides facets around and rings bands pole to pole. It is closed, so there is no cap.

sphere(coords, radius, *, azimuth=0, tilt=90, anchor="center", sides=24,
       rings=12, color=("#9933ff", 40), headers=None, attrs=None,
       style_to_use=None, name="Sphere", z_mode="ABS", hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] anchor point; z is an absolute (MSL) altitude.
radius	float	required	Radius in meters.
azimuth	float	0	Compass bearing the pole axis leans toward; only matters when the axis is tilted.
tilt	float	90	Pole-axis angle above horizontal: 90 = upright, 0 = horizontal, -90 = inverted.
anchor	str	'center'	Which point sits at coords: 'center', 'base' (bottom pole), or 'top' (top pole). See Shared conventions above.
sides	int	24	Facets around the equator; more gives a rounder sphere.
rings	int	12	Bands from pole to pole; more gives a rounder sphere.
color	color	('#9933ff', 40)	Fill color as a palette name, #rrggbb, or (color, opacity). The outline uses the same hue, opaque.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Sphere'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the sphere's panels.

# A 30 m sphere resting bottom-pole-down on a tower tip at 188 m MSL.
kmlb.shapes.sphere([-71.052183, 42.355688, 188], 30, anchor="base")

cube

Builds a cube, or a rectangular box, as six panels. Pass size as one value for a cube, or [x, y, z] for a box: x across (east at azimuth 0), y deep (north), z along the axis.

cube(coords, size, *, azimuth=0, tilt=90, anchor="base", color=("#ff5050", 40),
     cap=True, headers=None, attrs=None, style_to_use=None, name="Cube",
     z_mode="ABS", hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] base center; z is an absolute (MSL) altitude.
size	float or list[float]	required	Edge length (cube) or [x, y, z] (box), in meters.
azimuth	float	0	Compass bearing the axis leans toward; only matters when tilted.
tilt	float	90	Axis angle above horizontal: 90 = straight up, 0 = horizontal, -90 = down.
anchor	str	'base'	Which face sits at coords: 'base', 'center', or 'top'.
color	color	('#ff5050', 40)	Fill color; the outline uses the same hue, opaque.
cap	bool	True	Close the two end faces.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Cube'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the box's panels.

# A 170 m cube enclosing a park, resting on the ground (z_mode="RTG"). The park's
# two opposite corners are ~166 m apart, so a single 170 m size covers the footprint.
kmlb.shapes.cube([-71.032344, 42.336542, 0], 170, anchor="base", z_mode="RTG")

# A 60 x 30 x 120 m tower block instead: pass [x, y, z] (x along azimuth, y across, z up).
# azimuth=302 runs the long 60 m side along ~32 deg to fit the parcel.
kmlb.shapes.cube([-71.058717, 42.347704, 0], [60, 30, 120], anchor="base", azimuth=302, z_mode="RTG")

pyramid

Builds a 3D pyramid: a regular polygon base of sides edges rising to a single apex. The default sides=4 gives a square pyramid, and more sides approach a cone. orient spins the base about the axis so a corner or a flat side faces a chosen direction.

pyramid(coords, radius, height, sides=4, *, orient=0.0, azimuth=0, tilt=90,
        anchor="base", color=("#ffcc00", 40), cap=True, headers=None, attrs=None,
        style_to_use=None, name="Pyramid", z_mode="ABS", hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] base center; z is an absolute (MSL) altitude.
radius	float	required	Base center-to-corner distance, in meters.
height	float	required	Base-to-apex length along the axis, in meters.
sides	int	4	Number of base sides (3 or more).
orient	float	0.0	Rotation of the base about the axis, in degrees.
azimuth	float	0	Compass bearing the axis leans toward; only matters when tilted.
tilt	float	90	Axis angle above horizontal: 90 = straight up, 0 = horizontal, -90 = down.
anchor	str	'base'	Which point sits at coords: 'base', 'center', or 'top' (apex).
color	color	None	Fill color; the outline uses the same hue, opaque. When omitted, chosen by base edge count from shapes.PYRAMID_PALETTE (triangle, square, pentagon, ... each differ).
cap	bool	True	Close the base with a polygon.
headers	list	None	Titles for the attribute table (overrides the default).
attrs	list	None	Values for the attribute table, paired with headers.
style_to_use	str	None	Name of a shared polygon style to use instead of color.
name	str	'Pyramid'	Placemark name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the placemark hidden.
cam	Element	None	A LookAt/Camera default view.

Returns

Element: a KML Placemark wrapping a MultiGeometry of the pyramid's panels.

Raises

ValueError if sides is less than 3.

# Three pyramids following the Rose Kennedy Greenway, each with a 40 m-wide base
# oriented along the path (orient=125, its bearing) and resting on the ground
# (z_mode="RTG"). With no color given, each base-count takes a PYRAMID_PALETTE color.
kmlb.shapes.pyramid([-71.056663, 42.362658, 0], 20, 90, orient=125, z_mode="RTG")            # square (4-side)
kmlb.shapes.pyramid([-71.055614, 42.362052, 0], 20, 120, sides=3, orient=125, z_mode="RTG")  # triangular
kmlb.shapes.pyramid([-71.054195, 42.361390, 0], 20, 90, sides=6, orient=125, z_mode="RTG")   # hexagonal

soccer_ball

Builds a soccer ball: a truncated icosahedron of 12 pentagon and 20 hexagon faces, two-tone (dark pentagons, light hexagons by default). Returned as a folder of two placemarks so each color toggles on its own.

soccer_ball(coords, radius, *, azimuth=0, tilt=90, anchor="center",
            colors=(("#111111", 100), ("#ffffff", 100)), headers=None, attrs=None,
            style_to_use=None, name="Soccer Ball", z_mode="ABS", hidden=False,
            collapsed=True, cam=None) -> Element

Parameter	Type	Default	Description
coords	list[float]	required	[lon, lat, z] ball center; z is an absolute (MSL) altitude.
radius	float	required	Radius in meters.
azimuth	float	0	Compass bearing the pole axis leans toward.
tilt	float	90	Pole-axis angle above horizontal.
anchor	str	'center'	Which point sits at coords: 'center', 'base', or 'top'.
colors	color or pair	(('#111111', 100), ('#ffffff', 100))	A single color for both face types, or a (pentagon_color, hexagon_color) pair.
headers	list	None	Titles for each placemark's attribute table.
attrs	list	None	Values paired with headers.
style_to_use	str	None	Name of a shared polygon style to use on both placemarks instead of colors.
name	str	'Soccer Ball'	Folder name.
z_mode	str	'ABS'	Altitude mode; must be non-clamped for the solid to render.
hidden	bool	False	True returns the folder hidden.
collapsed	bool	True	Whether the folder starts collapsed.
cam	Element	None	A LookAt/Camera default view for the folder.

Returns

Element: a KML Folder holding the pentagon and hexagon placemarks.

# A small two-tone soccer ball resting on Boston Common.
kmlb.shapes.soccer_ball([-71.067507, 42.355289, 0], 8, anchor="base", z_mode="RTG")

Example: solids along a path

Each solid is an ordinary KML element, so a scene is just a list of them. This places one of each equally spaced along a path, then repeats with oriented variants (a tapered cylinder (frustum) on its side, an inverted open-ended cone, a bowl, and a sphere with its pole axis along the path).

The 3D solids and their oriented variants, viewed in Google Earth.

import kmlb

# Path for shapes to follow
a, b = [-71.014092, 42.353934], [-71.003726, 42.375887]   # [lon, lat]
d = kmlb.distance(a, b)
az = kmlb.bearing(a, b)

# eight equally spaced points along the path, at 60 m altitude
pts = [kmlb.destination(a, az, i / 7 * d)[:2] + [60.0] for i in range(8)]

solids = [
    kmlb.shapes.cylinder(pts[0], 120, 300),
    kmlb.shapes.cone(pts[1], 140, 350),
    kmlb.shapes.dome(pts[2], 150),
    kmlb.shapes.sphere([pts[3][0], pts[3][1], 250], 150),
    # oriented variants
    kmlb.shapes.cylinder([pts[4][0], pts[4][1], 150], 120, 400, top_radius=60, azimuth=az + 90, tilt=0, anchor="center"),
    kmlb.shapes.cone(pts[5], 140, 350, tilt=-90, anchor="top", cap=False),   # inverted, open (no base cap)
    kmlb.shapes.dome(pts[6], 150, tilt=-90, anchor="top"),          # bowl
    kmlb.shapes.sphere([pts[7][0], pts[7][1], 250], 150, azimuth=az, tilt=0),
]

kmlb.kml("3D solids", solids, path="shapes_3d.kml")

Download shapes_3d.kml

---

fresnel_zone

Builds the Fresnel zone of a point-to-point radio link as a 3D ellipsoid tube (a MultiGeometry of polygon panels) around the line of sight, and, by default, the straight line-of-sight path as well. The two are returned together in a folder so each can be toggled on its own in Google Earth.

The tube is inherently three-dimensional, so it uses absolute altitude: each endpoint's z should be an absolute (MSL) antenna altitude.

fresnel_zone(point_a, point_b, freq_mhz, *, name="RF Link", zone=1,
             cross_rings=25, ring_strips=16, zone_color=("yellow", 40),
             include_path=True, path_color="red", center_ring_color="cyan",
             z_mode="ABS", collapsed=True, hidden=False, cam=None) -> Element

Parameter	Type	Default	Description
point_a	list[float]	required	First endpoint [lon, lat, z]; z is an absolute (MSL) altitude.
point_b	list[float]	required	Second endpoint [lon, lat, z]; z is an absolute (MSL) altitude.
freq_mhz	float	required	Link frequency in megahertz.
name	str	'RF Link'	Link name.
zone	int	1	Fresnel zone number to draw.
cross_rings	int	25	Cross-section rings along the link; more gives a smoother tube lengthwise.
ring_strips	int	16	Strips (facets) around each cross-section; more gives a rounder tube.
zone_color	color	('yellow', 40)	Tube color as a palette name, #rrggbb hex, or (color, opacity) pair. The outline uses the same hue at full opacity.
include_path	bool	True	True also draws the line-of-sight path; False omits it.
path_color	color	'red'	Line-of-sight path color, in the same forms as zone_color.
center_ring_color	color	'cyan'	Color of a hoop drawn at the widest (mid-path) cross-section, in the same forms as zone_color. Set to None to omit it.
z_mode	str	'ABS'	Altitude mode. The tube only renders under a non-clamped mode. See Altitude modes.
collapsed	bool	True	False returns the folder expanded; True (default) returns it collapsed in the places panel.
hidden	bool	False	True returns the folder hidden.
cam	Element	None	A LookAt/Camera default view for the returned folder (or the bare tube).

Returns

Element: a KML Folder holding the tube plus the line-of-sight path and/or the center ring whenever either is drawn, or the tube Placemark on its own when both include_path is False and center_ring_color is None.

Raises

ValueError if point_a and point_b are the same location, if cross_rings is less than 2, or if ring_strips is less than 3.

Absolute altitude

Endpoint z values must be real (MSL) antenna altitudes. The tube is drawn at absolute altitude so it sits in space between the towers; a z of 0 would anchor the link at sea level.

Example

A 5.8 GHz link between two towers

# Endpoint z values are absolute antenna altitudes (meters above sea level).
link = kmlb.shapes.fresnel_zone([-71.082399, 42.347435, 228],
                                [-71.058514, 42.358468, 182],
                                freq_mhz=5800, name="North Link")
kmlb.kml("Link Study", [link], path="link.kml")

Example: a combined RF scene

Shapes are ordinary KML elements. Several can be added to document. This sample builds a down-tilted antenna sector and a point-to-point Fresnel Zone on two corners of the same building, then writes them to a single .kml.

A blue down-tilted antenna sector and a yellow point-to-point Fresnel tube over Boston.

import kmlb

# A 60-degree antenna sector with 15 degrees of down-tilt, on one building corner.
sector = kmlb.shapes.wedge([-71.082195, 42.347025, 228], azimuth=120, width=60,
                           radius=800, tilt=-15, name="Sector")

# A 5.8 GHz point-to-point link from another corner of the same building.
link = kmlb.shapes.fresnel_zone([-71.082399, 42.347435, 228],
                                [-71.058514, 42.358468, 182],
                                freq_mhz=5800, name="ptp-link")

kmlb.kml("RF Scene", [sector, link], path="rf_scene.kml")

Download rf_scene.kml
